Các khe cắm M.2 PCIe 4.0 kép hỗ trợ tới 22110 và hỗ trợ NVMe SSD RAID để nâng cao hiệu suất đến mức kinh ngạc. Tạo cấu hình RAID với hai thiết bị lưu trữ PCIe 4.0 để đạt được tốc độ truyền dữ liệu nhanh nhất trên nền tảng AMD Ryzen thế hệ thứ 3.
Cấu trúc đường mạch bộ nhớ ASUS OptiMem khai thác hiệu suất tối đa từ kiến trúc Infinity Fabric của AMD bằng cách hỗ trợ xung bộ nhớ cao hơn và độ trễ thấp hơn.
TUF Gaming X570-Plus (Wi-Fi) trang bị Intel Wireless AC-9260 Wi-Fi 5 (802.11ac) với 2x2 MU-MIMO và các kênh có băng tần rộng 160MHz để đạt được tốc độ không dây lên tới 1,73Gbps.* Thực tế, bộ điều hợp Wi-Fi Wireless-AC 9260 đẩy dữ liệu không dây lên nhanh hơn 2 lần - vì vậy bạn sẽ truyền nhanh, mượt ngay cả khi giàn máy của bạn ở xa bộ định tuyến. Intel Wireless-AC 9260 cũng hỗ trợ Bluetooth 5.0 đối với các kết nối nhanh hơn 2 lần so với trước đó và phạm vi phủ sóng lên tới 4 lần.
Sản phẩm | Bo mạch chủ |
Tên Hãng | ASUS |

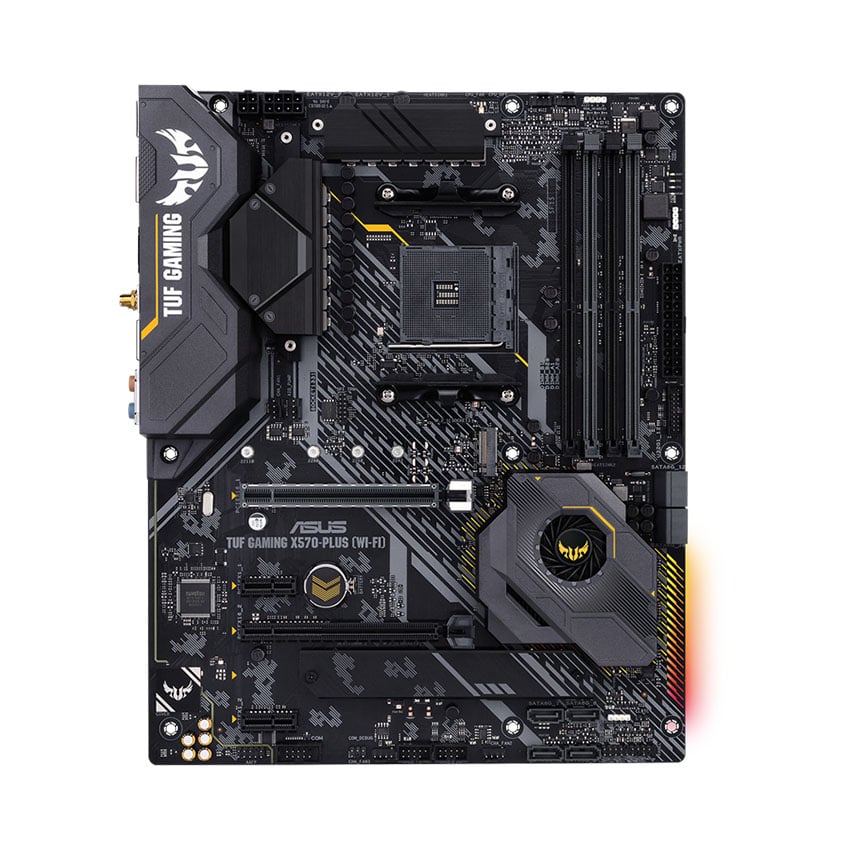

Modela | TUF X570 GAMING-PLUS (WI-FI) |
CPU hỗ trợ | AMD |
Chipset | X570 |
RAM hỗ trợ | 4 x DDR4 memory slots, support up to 128GB |
Khe cắm mở rộng | 3rd Gen AMD Ryzen™ Processors |
1 x PCIe 4.0 x16 (x16 mode) | |
2nd Gen AMD Ryzen™ Processors | |
1 x PCIe 3.0 x16 (x16 mode) | |
Ổ cứng hỗ trợ | 8 x SATA 6Gb/s ports, 1 x M.2 slot |
Cổng kết nối (Internal) | 2 x Aura RGB Strip Header(s) |
1 x Addressable Gen 2 header(s) | |
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) | |
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) | |
1 x SPI TPM header | |
8 x SATA 6Gb/s connector(s) | |
1 x CPU Fan connector(s) | |
1 x CPU OPT Fan connector(s) | |
3 x Chassis Fan connector(s) | |
1 x AIO_PUMP connector | |
1 x 24-pin EATX Power connector(s) | |
1 x 8-pin ATX 12V Power connector(s) | |
1 x 4-pin ATX 12V Power connector(s) | |
1 x Front panel audio connector(s) (AAFP) | |
1 x System panel(s) | |
1 x Clear CMOS jumper(s) | |
1 x COM port header | |
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports | |

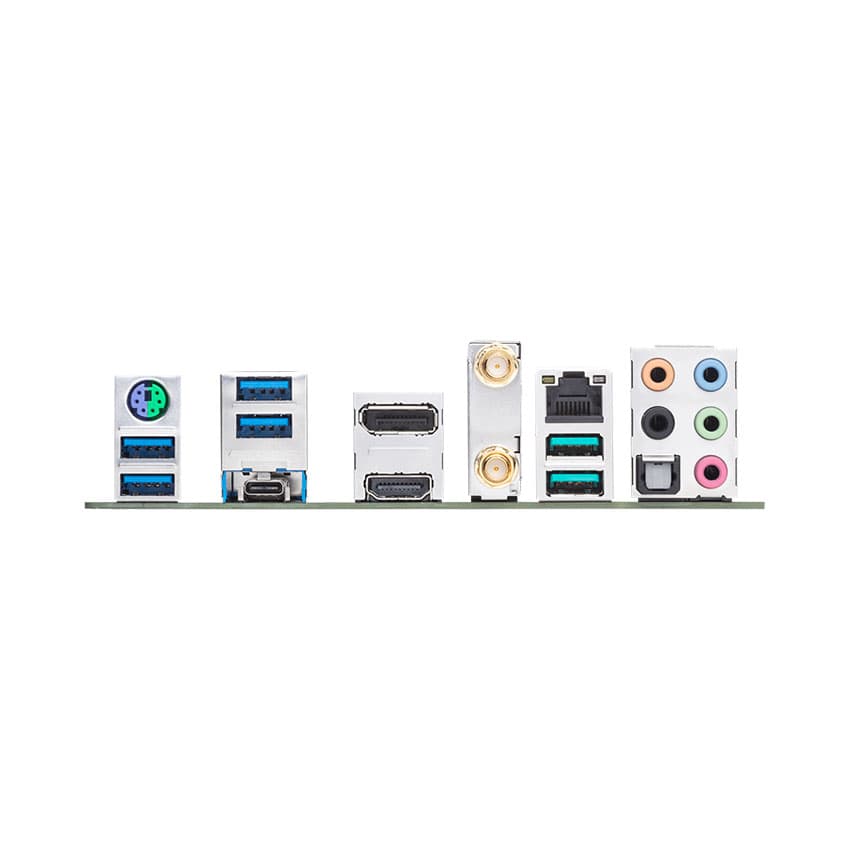

Cổng kết nối (Back Panel) | 1 x PS/2 keyboard/mouse combo port(s) |
1 x DisplayPort | |
1 x HDMI | |
1 x LAN (RJ45) port(s) | |
1 x Optical S/PDIF out | |
5 x Audio jack(s) | |
4 x USB 3.2 Gen 1 (up to 5Gbps) ports | |
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM) | |
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) | |
LAN / Wireless | Realtek® L8200A |
Wi-Fi 802.11 a/b/g/n/ac | |
Supports dual band frequency 2.4/5 GHz | |
Supports MU-MIMO | |

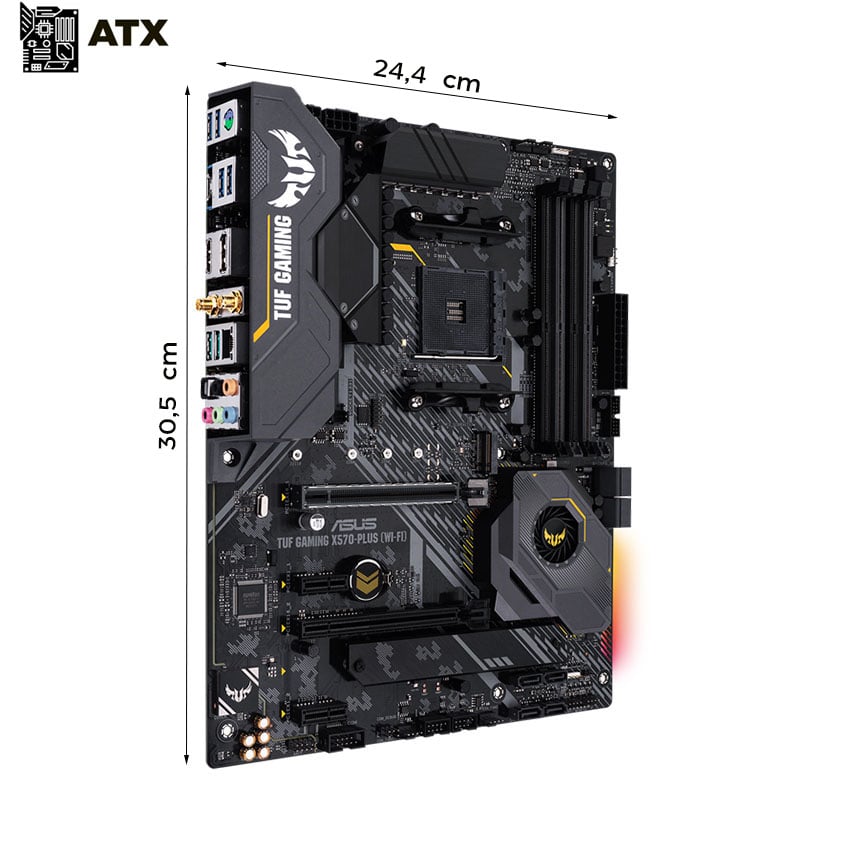

Kích cỡ | ATX Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
